What Are The Advantages of Vacuum Capacitor

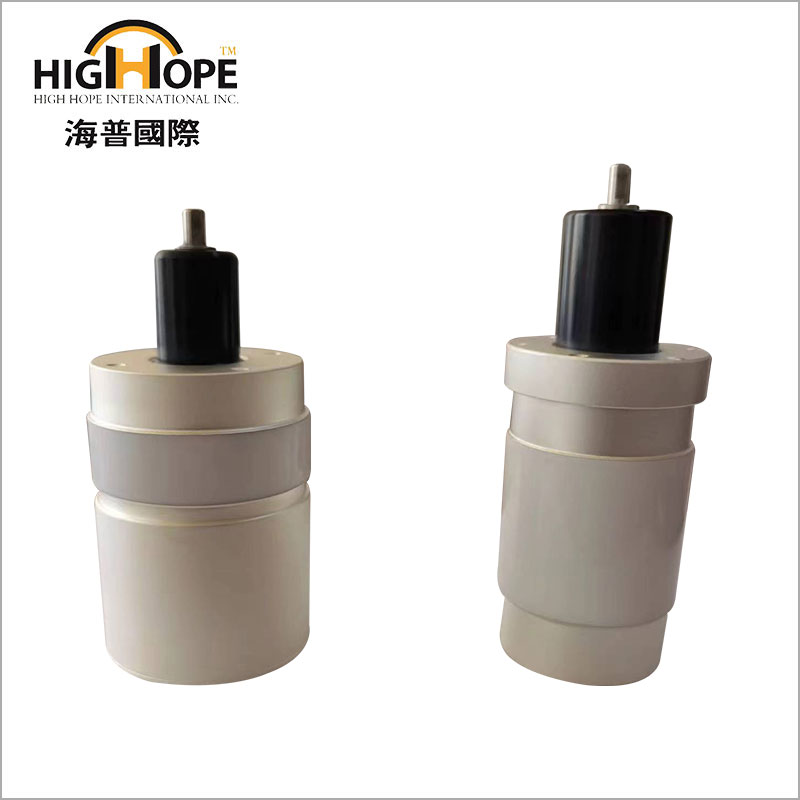

Vacuum capacitors, also known as vacuum variable capacitors, are electronic components that offer several advantages compared to other types of capacitors. These advantages make them suitable for various applications, particularly in high-power and high-frequency circuits. Here are some key advantages of vacuum capacitors:

1.  High Voltage Rating : Vacuum capacitors can handle high voltages, making them suitable for applications that require high-power and high-voltage handling capabilities.

2.  High Current Rating : These capacitors can also handle high currents, making them suitable for applications where large currents need to be switched or controlled.

3.  Low Losses : Vacuum capacitors have low dielectric losses due to the absence of any solid dielectric material. This results in high efficiency and minimal energy loss during operation.

4.  High-Quality Factor (Q-factor) : The Q-factor of a capacitor measures its ability to store energy. Vacuum capacitors typically have a high Q-factor, which is beneficial in applications requiring high energy storage and low energy losses.

5.  Frequency Stability : Vacuum capacitors have excellent frequency stability over a wide range of operating frequencies. This makes them suitable for use in high-frequency applications, such as RF circuits and antennas.

6.  Tunable Capacitance : Vacuum capacitors offer variable capacitance that can be adjusted over a wide range. This tunable feature allows for precise control and tuning in various applications.

7.  High Reliability : The absence of solid dielectric materials and the vacuum-sealed construction contribute to the high reliability and long operational life of vacuum capacitors.

8.  Wide Temperature Range : Vacuum capacitors can operate over a wide temperature range, making them suitable for extreme environmental conditions.

9.  Low Parasitic Inductance and Capacitance : Vacuum capacitors have low parasitic inductance and capacitance, which is beneficial in high-frequency circuits where minimizing parasitic effects is crucial.

10.  Low Outgassing : Vacuum capacitors have minimal outgassing, which is the release of gas from the capacitor's internal components. This characteristic is essential in high-vacuum and space applications.

11.  Customizable Design : Vacuum capacitors can be designed and customized to meet specific application requirements, including capacitance range, voltage rating, and physical dimensions.

While vacuum capacitors offer several advantages, they are generally more expensive than other types of capacitors and require careful handling and maintenance due to their vacuum-sealed construction. However, their unique combination of features makes them valuable components in various high-power and high-frequency applications, including RF power amplifiers, broadcast transmitters, induction heating systems, particle accelerators, and more.
