Exploring the Key Components of a Double Wall Corrugated Pipe Extrusion Line

In the realm of manufacturing durable and efficient drainage solutions, double wall corrugated pipes stand out for their structural integrity and versatility. Central to their production is the Double Wall Corrugated Pipe Extrusion Line, a sophisticated system comprising several essential components. Understanding these components and their roles is crucial for appreciating how they enhance both the quality and efficiency of the manufacturing process.

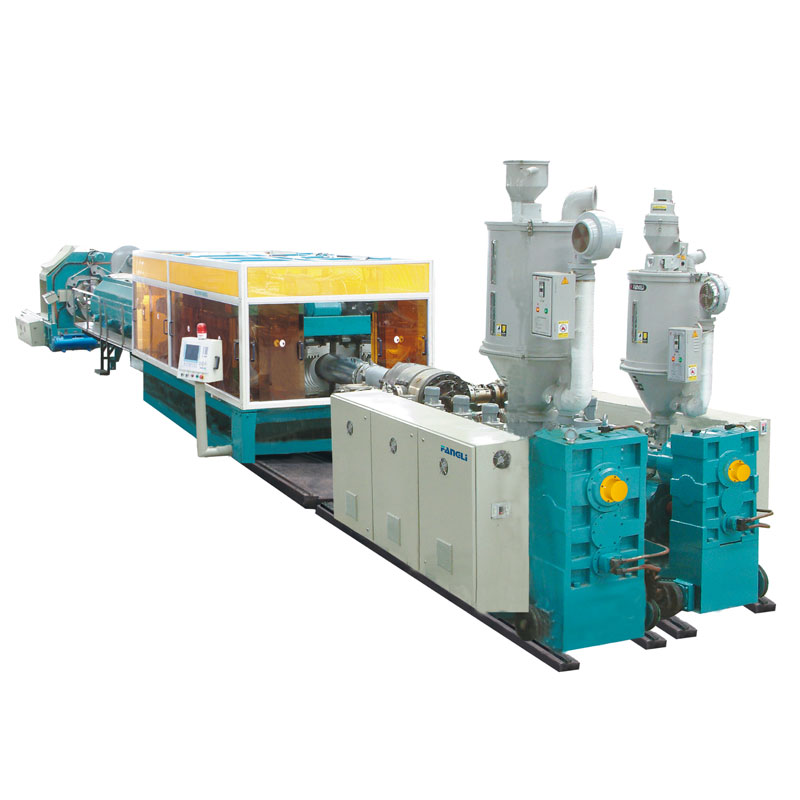

Key Components of a Double Wall Corrugated Pipe Extrusion Line

1. Extruder:

  - Function: The heart of the extrusion line, the extruder melts and conveys the raw material (typically high-density polyethylene or PVC) through a screw mechanism under controlled temperature and pressure.

  - Contribution: Ensures consistent material flow and homogeneity, crucial for maintaining the structural integrity and strength of the pipes.

2. Corrugator:

  - Function: This component shapes the melted material into a corrugated profile using molds and forming techniques.

  - Contribution: Provides the distinctive corrugated structure that enhances pipe stiffness, crush resistance, and flexibility, tailored to specific application requirements.

3. Cooling System:

  - Function: Rapidly cools and solidifies the corrugated pipe after forming to stabilize its shape and dimensions.

  - Contribution: Prevents deformation and ensures dimensional accuracy, crucial for meeting quality standards and performance expectations.

4. Haul-off Unit:

  - Function: Pulls the extruded pipe at a controlled speed through the production line.

  - Contribution: Maintains tension and speed consistency, optimizing production efficiency and reducing material waste.

5. Cutter:

  - Function: Cuts the extruded pipe to the desired length, often synchronized with the haul-off unit's speed.

  - Contribution: Precision cutting ensures uniform pipe lengths, essential for ease of installation and overall project efficiency.

6. Control Systems and Automation:

  - Function: Integrates sensors, PLCs (Programmable Logic Controllers), and human-machine interfaces (HMIs) to monitor and control the entire extrusion process.

  - Contribution: Enables real-time adjustments, minimizes downtime, and enhances consistency in pipe quality, contributing significantly to manufacturing efficiency.

Enhancing Quality and Efficiency

Each component in a Double Wall Corrugated Pipe Extrusion Line plays a critical role in achieving high-quality, efficient production:

- Quality Assurance: The precise control over material flow, temperature, and cooling ensures uniform pipe dimensions, structural integrity, and resistance to environmental factors such as soil acidity and temperature fluctuations.

- Efficiency Gains: Integrated automation streamlines operations, reduces human error, and optimizes throughput, translating into lower production costs and faster turnaround times.

- Customization Capabilities: Modern extrusion lines offer flexibility in adjusting pipe diameter, wall thickness, and material composition, catering to diverse application needs from municipal drainage systems to telecommunications infrastructure.

In conclusion, the synergy of advanced components within a Double Wall Corrugated Pipe Extrusion Line exemplifies the intersection of engineering precision and material science. By understanding these components and their contributions, manufacturers and stakeholders can better appreciate the innovative strides in pipe manufacturing, ensuring robust, sustainable solutions for infrastructure challenges globally.
