High Speed Fuses vs. Standard Fuses: Key Differences Explained

When it comes to protecting electrical circuits from overcurrent, choosing the right fuse is crucial. While standard fuses are widely used in many applications, there are scenarios where a more specialized fuse, like a High Speed Fuse, is necessary. But what sets High Speed Fuses apart from standard fuses? In this blog, we’ll dive into the key differences between these two types of fuses, helping you understand when and why to use each.

Understanding Standard Fuses

Standard fuses are the most common type of protective device used in electrical circuits. They are designed to interrupt the flow of electricity when the current exceeds a certain threshold, protecting the circuit from damage due to overheating or short circuits. Standard fuses are typically used in general electrical applications such as home wiring, automotive circuits, and low-voltage devices.

Key Characteristics of Standard Fuses

- Response Time: Standard fuses operate within a range of milliseconds to seconds, depending on the current overload. This response time is sufficient for many applications but may not be fast enough for sensitive electronic components.

- Energy Let-Through: The energy let-through of a standard fuse is higher than that of a High Speed Fuse. While this is acceptable for many applications, it may not provide adequate protection for semiconductor devices.

- Construction: Standard fuses are usually made with simpler materials and construction techniques, focusing on reliability and cost-effectiveness for general-purpose use.

What Makes High Speed Fuses Different?

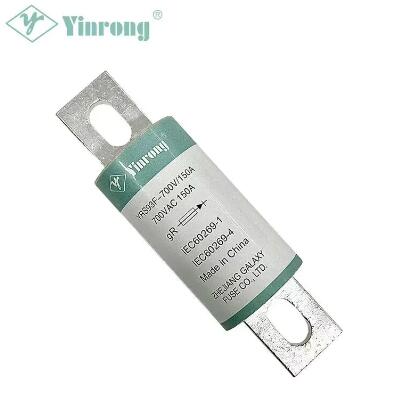

High Speed Fuses are specifically engineered for applications that require a faster response to overcurrent conditions. These fuses are designed to protect components that are highly sensitive to even brief overcurrent events, such as semiconductors used in power electronics.

Key Differences Between High Speed and Standard Fuses

1. Response Time

  - High Speed Fuses: Designed to operate within microseconds, High Speed Fuses respond almost instantaneously to overcurrent conditions. This ultra-fast response is crucial in protecting semiconductors from damage.

  - Standard Fuses: While still effective, standard fuses have a slower response time, typically in the range of milliseconds to seconds. This makes them suitable for general-purpose applications but less ideal for protecting sensitive electronics.

2. Energy Let-Through

  - High Speed Fuses: These fuses are designed to minimize the energy let-through during a fault. The low energy let-through is essential for preventing damage to semiconductor devices, which can be easily destroyed by even a small amount of excess energy.

  - Standard Fuses: The energy let-through in standard fuses is higher, which can be adequate for many applications but may not provide the necessary protection for sensitive devices.

3. Applications

  - High Speed Fuses: Commonly used in applications involving semiconductors, such as power converters, industrial drives, electric vehicles, and UPS systems. These fuses are essential in scenarios where precision and speed are paramount.

  - Standard Fuses: Used in a wide range of general-purpose applications, including residential wiring, automotive circuits, and consumer electronics. Standard fuses are versatile and cost-effective for less sensitive applications.

4. Construction and Materials

  - High Speed Fuses: Constructed with materials that allow for rapid melting and minimal energy let-through. These fuses often use silver or copper elements and may include specialized arc-quenching materials like silica sand.

  - Standard Fuses: Typically constructed with materials that balance cost and performance. The fuse element may be made of materials like tin or zinc, and the construction focuses on durability and reliability for general use.

When to Use High Speed Fuses Over Standard Fuses

- Semiconductor Protection: When protecting devices like diodes, thyristors, or IGBTs, High Speed Fuses are the preferred choice due to their fast response time and low energy let-through.

- Precision Applications: In systems where even a brief overcurrent event can cause significant damage or downtime, such as in industrial automation or renewable energy systems, High Speed Fuses provide the necessary protection.

- Cost vs. Performance: While High Speed Fuses are more expensive than standard fuses, their performance in protecting sensitive components justifies the cost in critical applications.

Conclusion

High Speed Fuses and standard fuses serve different purposes in electrical systems. While standard fuses are suitable for a wide range of general applications, High Speed Fuses are essential in protecting sensitive semiconductor devices and ensuring the reliability of critical systems. Understanding the differences between these two types of fuses can help you make informed decisions when designing or maintaining electrical circuits, ensuring that you choose the right level of protection for your specific needs.
