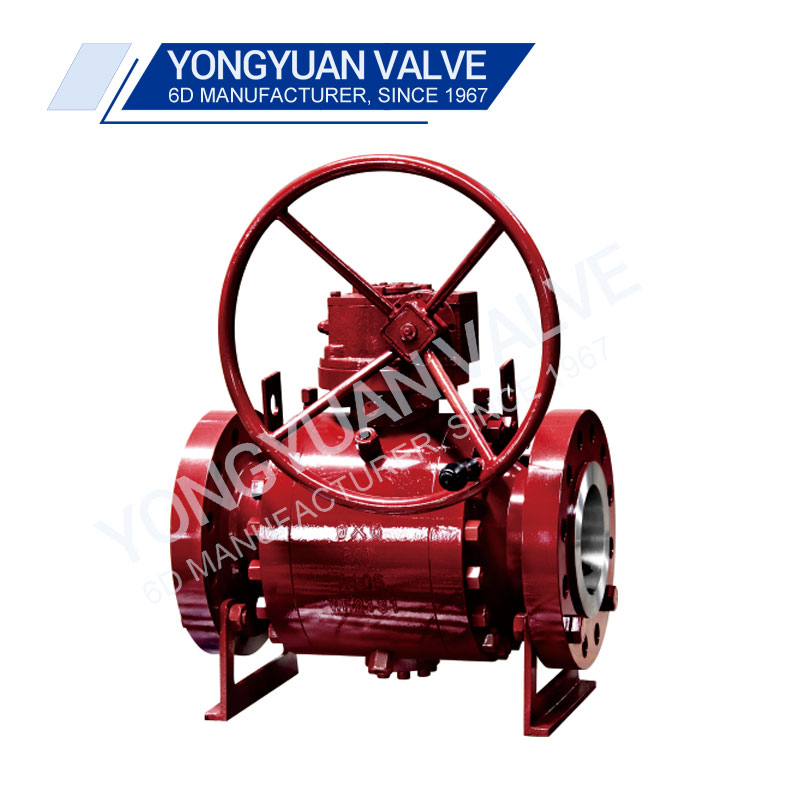

Understanding the API 6D 3-Piece Trunnion Ball Valve

In the world of industrial pipeline systems, the API 6D 3-piece trunnion ball valve is a critical component that ensures reliability and safety. Known for its robust design and superior performance, this valve is widely used in industries such as oil and gas, petrochemicals, and energy. This blog will delve into the features, advantages, and applications of this essential valve.

Key Features of the API 6D 3-Piece Trunnion Ball Valve

1. API 6D Compliance

  - Adheres to the API 6D standard, ensuring high-quality performance and reliability.

  - Designed for use in pipeline and piping systems with strict safety and operational requirements.

2. Three-Piece Construction

  - Modular design allows for easy maintenance and repair without disrupting the pipeline.

  - Enhanced flexibility for installation and servicing.

3. Trunnion-Mounted Design

  - Provides additional support for the ball, reducing torque requirements.

  - Ideal for high-pressure and large-diameter applications.

4. Sealing System

  - Double block and bleed capabilities ensure tight sealing and safety.

  - Spring-loaded seats provide consistent sealing performance even under varying pressures.

5. Material Versatility

  - Available in a variety of materials, including carbon steel, stainless steel, and alloy steel.

  - Compatible with different media such as gas, oil, and corrosive substances.

Advantages

- Durability: Designed to withstand high pressure and temperature conditions.

- Safety: Double block and bleed feature minimizes risks during maintenance.

- Efficiency: Low operating torque and reliable sealing improve system performance.

- Versatility: Suitable for a wide range of industrial applications.

Applications

- Oil and Gas: Used in upstream, midstream, and downstream operations for flow control.

- Petrochemicals: Ensures precise handling of chemicals and hydrocarbons.

- Power Generation: Controls steam, water, and gas flows in power plants.

- Water Treatment: Manages fluid distribution and isolation in treatment facilities.

The API 6D 3-piece trunnion ball valve is an indispensable asset for industries requiring reliable and efficient flow control. Its robust construction, compliance with international standards, and adaptability to various applications make it a preferred choice for engineers and operators worldwide.
