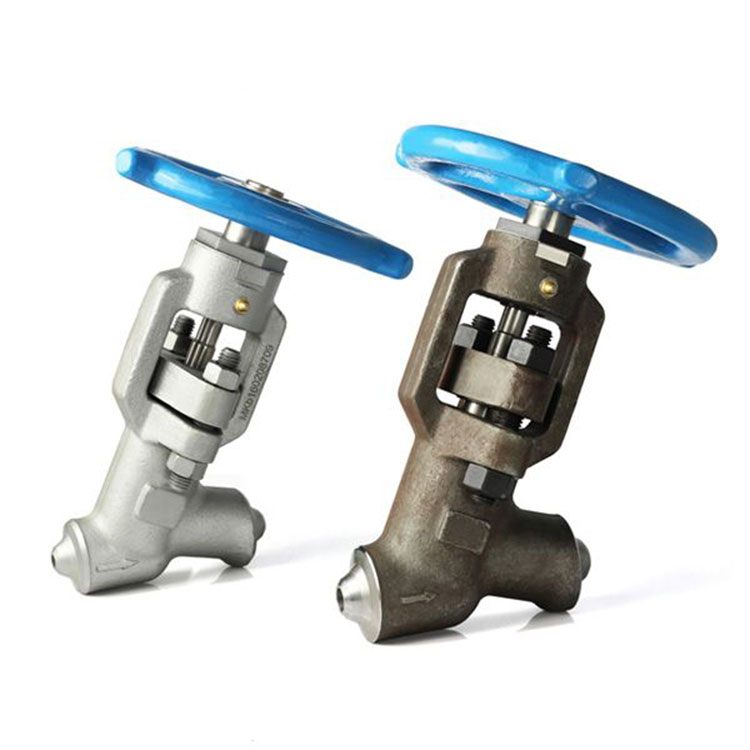

A Y pattern globe valve is a crucial component in many industrial fluid systems, providing reliable flow control and shut-off capabilities. To fully appreciate its effectiveness, it's essential to understand the key components that make up this valve and how they contribute to its functionality.
1. Body
The body of the Y pattern globe valve serves as the foundation and primary housing for all other components. It's typically made from cast iron, steel, or stainless steel to ensure durability and resistance to corrosion. The body houses the flow path, connecting the inlet and outlet ports.
2. Disc
The disc is a key moving part within the valve that controls the flow of fluid. It sits within the flow path and is connected to the stem. By rotating the stem, the disc can be lifted or lowered, allowing or restricting fluid flow. The design of the disc can vary, with some Y pattern globe valves featuring a balanced disc for improved sealing and reduced torque requirements.
3. Stem
The stem connects the disc to the actuator, which can be a manual handwheel, electric motor, or pneumatic device. The stem allows for the movement of the disc, enabling the valve to be opened or closed. It's essential that the stem and disc are properly aligned to ensure smooth operation and effective sealing.
4. Bonnet
The bonnet, also known as the cover, is the part of the valve that houses the internal components, including the disc and stem. It's bolted or welded onto the body, creating a sealed enclosure that prevents fluid leakage. The bonnet can be removable, allowing for easy access to the internal components for maintenance or repair.
5. Seats
The seats are the surfaces within the valve that the disc contacts when the valve is closed. They provide a seal to prevent fluid leakage and ensure that the valve is effective at shutting off flow. Seats are typically made from materials that are resistant to wear and corrosion, ensuring a long-lasting and reliable seal.
6. Packing
Packing, or gland packing, is a material used to seal the area around the stem, preventing fluid leakage. It's compressed between the bonnet and the body, creating a tight seal around the stem. Packing is often made from graphite, Teflon, or other materials that are resistant to wear and fluid degradation.
7. Actuator
The actuator is the device that provides the force to move the stem and operate the valve. It can be a manual handwheel, an electric motor, or a pneumatic device. The actuator allows for remote or automated operation of the valve, making it easier to control and monitor fluid systems.
In summary, the key components of a Y pattern globe valve work together to provide reliable flow control and shut-off capabilities. The body houses the flow path, the disc controls the flow, the stem connects the disc to the actuator, the bonnet encloses the internal components, the seats provide a seal, the packing prevents leakage around the stem, and the actuator provides the force to operate the valve. Understanding these components and their contributions to the valve's functionality is essential for ensuring the safe and effective operation of any industrial fluid system.
