Unraveling Precision: The Working Principle of Y Pattern Globe Valves and Fluid Flow Control

Introduction:

In the intricate world of fluid dynamics, valves stand as gatekeepers, regulating the flow of liquids and gases within industrial pipelines. Among these, the Y Pattern Globe Valve emerges as a precision instrument, uniquely designed to control fluid flow with accuracy and efficiency. In this blog, we will delve into the working principle of Y Pattern Globe Valves, unraveling the mechanisms that make them masters of fluid flow control.

Understanding the Y Pattern Globe Valve:

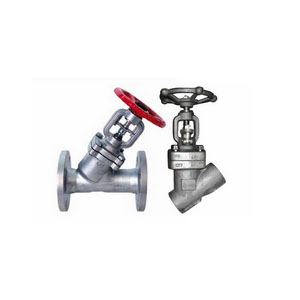

The Y Pattern Globe Valve derives its name from the distinctive Y-shaped internal configuration that sets it apart from conventional linear-flow globe valves. This specialized design introduces an angle to the flow direction, impacting how fluid navigates through the valve. To comprehend the working principle of a Y Pattern Globe Valve, let's break down its operation into key steps.

1. Starting Position:

In its default or starting position, the Y Pattern Globe Valve is in a closed state, preventing the flow of fluid through the pipeline. The valve seat, a sealing surface within the valve, is engaged with the disc or plug, creating a secure seal that halts the flow.

2. Opening the Valve:

To initiate fluid flow, the operator (either manually using a handwheel or automatically through an actuator) turns the handwheel or actuator. This motion is transmitted to the stem, a component connected to the handwheel or actuator, causing it to move linearly.

3. Disc or Plug Movement:

As the stem moves, it acts on the disc or plug, lifting it away from the valve seat. The disc or plug, which moves perpendicular to the flow direction, creates an opening for fluid to pass through. This is a key characteristic of Y Pattern Globe Valves, where the flow path takes an angled route, contributing to enhanced flow control.

4. Flow Modulation:

The angle introduced by the Y-shaped passageway allows for precise modulation of fluid flow. As the disc or plug is lifted, the clearance between the disc or plug and the valve seat determines the amount of fluid that can pass through. This unique design facilitates accurate control over the flow rate, making Y Pattern Globe Valves particularly suitable for applications that demand precision.

5. Gradual Change in Direction:

As the fluid flows through the Y-shaped passageway, it experiences a more gradual change in direction compared to conventional linear-flow valves. This design minimizes turbulence, reducing the risk of erosion and ensuring a smoother flow.

6. Closing the Valve:

To stop or reduce the fluid flow, the operator turns the handwheel or actuator in the opposite direction. The stem lowers the disc or plug, re-engaging it with the valve seat to create a secure seal and halt the flow of fluid.

Key Principles Behind Fluid Flow Control:

1. Precise Modulation:

  - The perpendicular movement of the disc or plug, coupled with the Y-shaped passageway, allows for precise modulation of fluid flow. Operators can fine-tune the position of the disc or plug to achieve the desired flow rate.

2. Reduced Pressure Drop:

  - The Y Pattern design contributes to reduced pressure drop across the valve, ensuring efficient fluid flow while minimizing energy losses. This is particularly advantageous in high-pressure systems.

3. Enhanced Control in High-Pressure Applications:

  - Y Pattern Globe Valves excel in high-pressure applications, where the unique flow characteristics help manage the challenges associated with controlling fluid at elevated pressures.

4. Mitigation of Turbulence and Erosion:

  - The gradual change in fluid direction within the Y-shaped passageway minimizes turbulence, reducing the risk of erosion on valve components. This is crucial for maintaining the longevity and efficiency of the valve.

Conclusion:

In the symphony of fluid control, Y Pattern Globe Valves stand as virtuosos, orchestrating precise modulation and efficient flow. The working principle, driven by the Y-shaped passageway, ensures that these valves provide accurate control over fluid movement. Whether in power generation, chemical processing, or other industries that demand precision, the Y Pattern Globe Valve serves as a testament to engineering mastery in navigating the complex currents of fluid dynamics. As industries evolve, the Y Pattern Globe Valve remains a symbol of precision and reliability, guiding the flow of fluids with finesse and efficiency.
