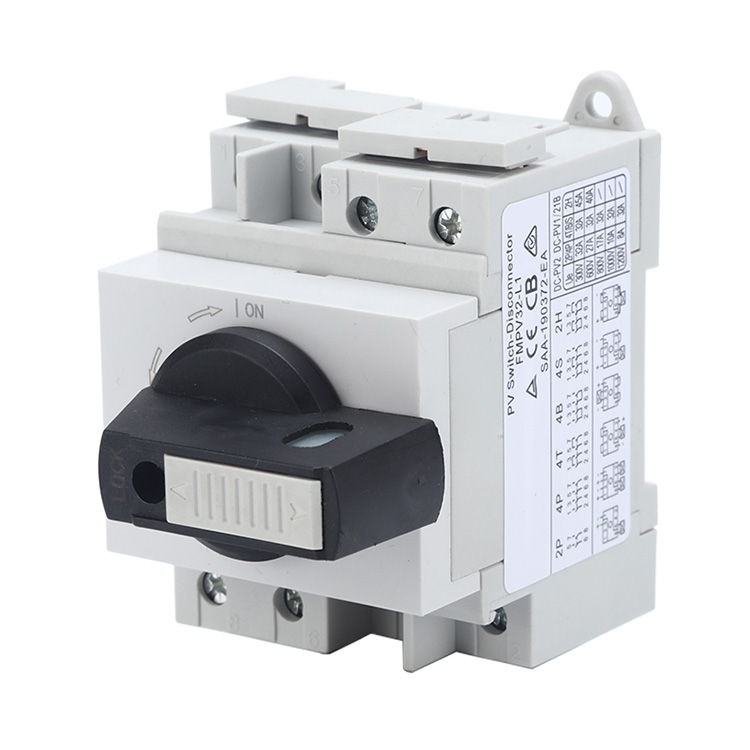

Unveiling Strength: Understanding the Breaking Capacity of Din Rail Mounted Padlockable DC Isolator Switches

2024-01-22

Introduction:

In the intricate web of electrical systems, safety takes center stage, especially when it comes to handling short circuits. Din Rail Mounted Padlockable DC Isolator Switches play a crucial role in power control, and understanding their breaking capacity or short-circuit withstand rating is paramount for ensuring the integrity of the electrical infrastructure. In this blog post, we will explore the significance of breaking capacity and its role in the performance of these isolator switches.

Defining Breaking Capacity:

Breaking capacity, also known as short-circuit withstand rating, refers to the maximum fault current that an isolator switch can safely interrupt or disconnect without sustaining damage. In the context of Din Rail Mounted Padlockable DC Isolator Switches, this rating is a critical specification that determines the switch's ability to handle and safely interrupt short-circuit currents.

Key Aspects of Breaking Capacity:

1. Fault Current Handling:

  The breaking capacity is a measure of the maximum fault current that the isolator switch can interrupt without causing harm to itself or the connected electrical system. This includes short circuits that may occur due to faults in the circuit.

2. Preventing Damage:

  A high breaking capacity ensures that the switch can swiftly disconnect the circuit in the event of a short circuit, preventing damage to the switch and other connected components.

3. Safety Considerations:

  The breaking capacity is a crucial safety feature as it helps prevent catastrophic failures and damage that could occur if the switch were unable to handle the short-circuit current.

4. Compliance with Standards:

  Electrical standards and codes often specify minimum breaking capacity requirements for isolator switches. Ensuring compliance with these standards is essential for the safety and reliability of the electrical installation.

Importance of Breaking Capacity in Isolator Switches:

1. Protecting Components Downstream:

  A high breaking capacity protects components downstream from the short-circuit location by swiftly disconnecting the faulty circuit, minimizing the risk of damage to connected devices.

2. Ensuring Personnel Safety:

  In the event of a short circuit, a switch with a sufficient breaking capacity ensures the safety of personnel by interrupting the fault current promptly and preventing hazardous situations.

3. Maintaining System Reliability:

  The breaking capacity contributes to the overall reliability of the electrical system. Swift and effective interruption of short circuits helps maintain the integrity and performance of the entire system.

Considerations When Choosing Isolator Switches:

1. Short-Circuit Currents in the System:

  Understand the potential short-circuit currents in the electrical system to select a Din Rail Mounted Padlockable DC Isolator Switch with an appropriate breaking capacity.

2. Compliance with Standards:

  Ensure that the isolator switch complies with relevant industry standards and codes specifying minimum breaking capacity requirements.

3. System Voltage:

  Consider the system voltage when evaluating breaking capacity. The switch should be rated for the voltage level at which it will be operating.

4. Future Expansion:

  Factor in potential system expansions and increased fault currents when selecting isolator switches to ensure they can accommodate future changes in the electrical infrastructure.

Conclusion:

The breaking capacity of Din Rail Mounted Padlockable DC Isolator Switches is a vital aspect that directly impacts the safety and reliability of electrical systems. By understanding this specification and selecting switches with appropriate breaking capacities, users can fortify their power control systems against the potential hazards posed by short circuits. As guardians of electrical infrastructure, isolator switches with robust breaking capacities contribute to a secure and resilient power distribution network.
