What is Heavy Duty Connector Insert

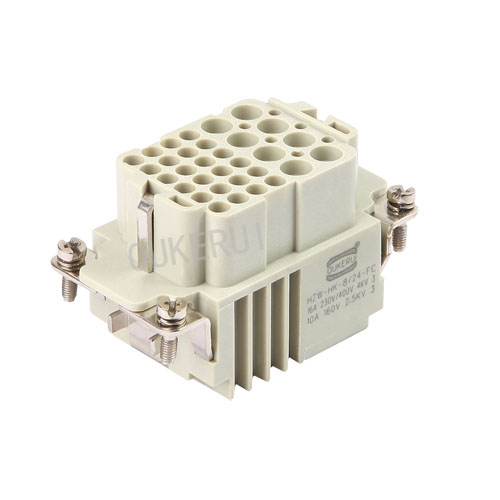

A Heavy Duty Connector Insert is a key component used inside a heavy duty industrial connector system. These connectors are widely used in industrial automation, machinery, robotics, and electrical installations where reliable, secure, and high-performance connections are essential. The insert is the internal part that provides the electrical or signal connection between wires.

Key Features of Heavy Duty Connector Inserts:

Electrical Interface:

Contains male (pin) or female (socket) contacts.

Supports power, signal, or data transmission.

Modular Design:

Often interchangeable and modular, allowing different inserts to be used in the same housing.

Available in multiple pole configurations (e.g., 6-pin, 12-pin, 24-pin, etc.).

Material:

Usually made from thermoplastic or thermoset resin for insulation and durability.

Contacts are typically copper alloy with silver or gold plating.

Mounting:

Snaps or screws into the connector housing.

Must match the connector's size and mounting format.

Compliance:

Designed to meet international standards (e.g., DIN, IEC).

Typical Applications:

Industrial machinery (CNC machines, presses, automation lines)

Railway and transportation

Robotics and factory automation

Energy and power distribution

Heavy equipment and construction vehicles

Advantages:

Reliable performance under harsh conditions (vibration, dust, moisture)

Ease of installation and replacement

Customizability with different contact types (power, signal, pneumatic)
